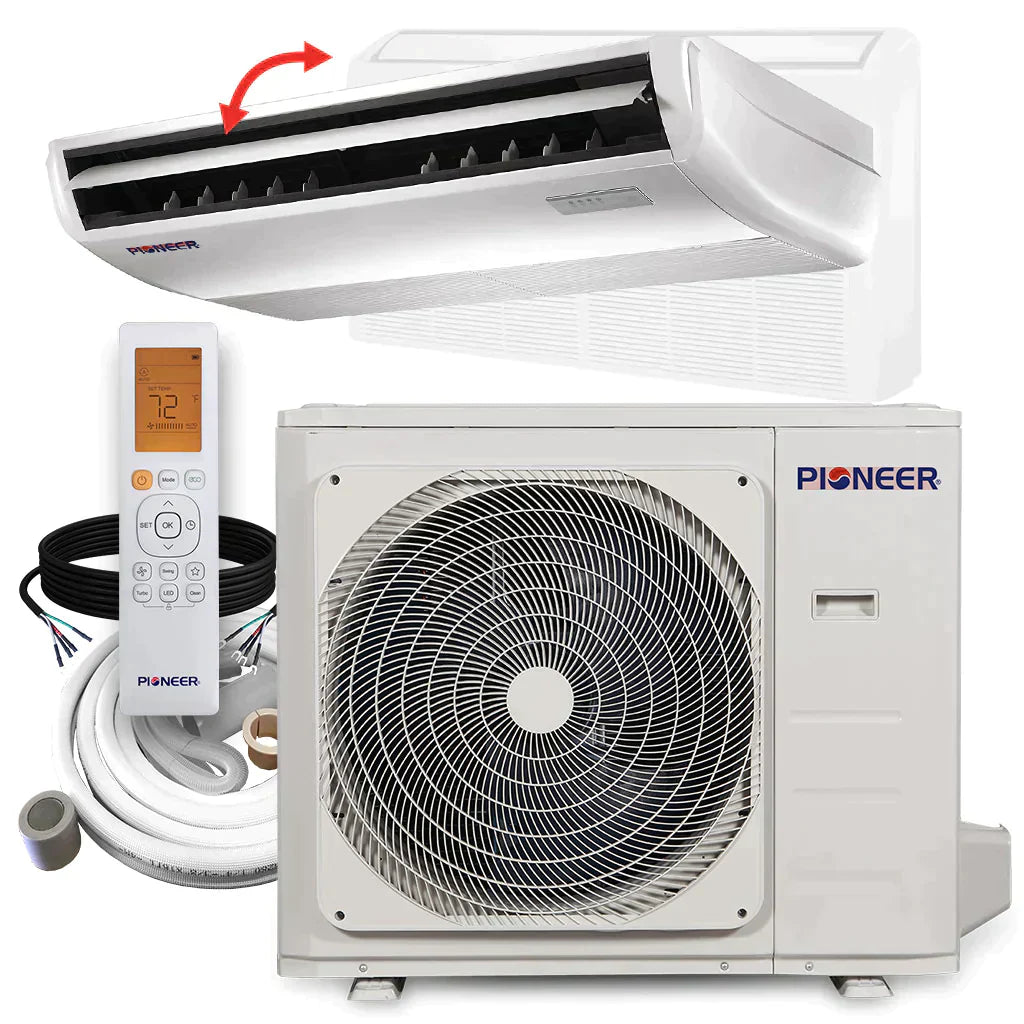

36,000 BTU 17 SEER Mini-Split Air Conditioner Heat Pump L54769

Pioneer Mini Split offers a wide selection of flexible floor-ceiling mount ductless mini splits that are ideal for homes and commercial properties. These Flex Mount systems come with ductless indoor units that can be mounted in various positions based on requirements, including ductless air conditioning ceiling mounts. You can mount our indoor floor-ceiling flex mount mini split units of smaller-capacity systems as floor consoles or in low wall-attached positions. Our larger-capacity versions come with larger indoor units; you can mount these in ceiling-suspended positions as well. Our floor and ductless air conditioning ceiling mount mini split systems are equipped with digital frequency control for automatic capacity adjustments, convenient remote controller, automatic air sweeping louvers, cooling, heating, dehumidification, ventilation modes, and with fresh air intake options. Check out our selection of floor-ceiling flex mount ductless mini splits!

Mini Split Includes

• Indoor Unit
• Outdoor Unit
• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User鈥檚 Manual
• Manufacturer Warranty

Features

• Ultra High Efficiency聽Inverter++ floor/ceiling split heat pump system
• Cooling capacity:聽36,000 BTU/H聽with聽17.0 SEER/8.0 EER聽efficiency
• Heating capacity:聽38,000 BTU/H聽with聽10.0 HSPF/2.8 C.O.P.聽efficiency
• Voltage:聽208~230 V, 60 Hertz, 1 Ph
• Floor/Ceiling Flex Mount聽Air Conditioning &聽Heating System
• Variable Speed聽DC Inverter聽Operation Mode
• Customizable length聽copper line set with flare connections
• AHRI Estimated Annual Operating Costs:聽
• Cooling:聽$280.00聽
• Heating:聽$803.00
• Front Desk Control
  With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
• 46掳 F Heating
• Refrigerant聽Leakage Detect聽
  Indoor unit shows error code聽'EC' and stops automatically聽when refrigerant leakage is聽detected. This protects the聽compressor from high聽temperature damage due to聽refrigerant leakage.
• Anti-cold Air Function聽
  Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
• Emergency Using
• Low Ambient Cooling聽
  With built-in low ambient kit or special designed PCB, outdoor fan speeds can be changed automatically according to condensation temperature. The system can run heating operation even when the outdoor ambient temperature is down to -13掳F

• Follow Me聽
  Temperature sensor built in聽the remote controller will聽sense it鈥檚 surrounding聽temperature. The unit will聽adjust the room temperature聽more accurately to give you聽comfort.

• Wired Controller
  Compared with infrared聽remote controller, wired聽controller can be fixed on the聽wall and makes air conditioner聽control more convenient.
• Remote in Engineer Mode


• Central Control Management
  The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of聽3.90 Ft.

PRODUCT SPECIFICATIONS:

Performance Data

Condenser

Air Handler

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual
• AHRI Certificate
• Submittal Sheet
